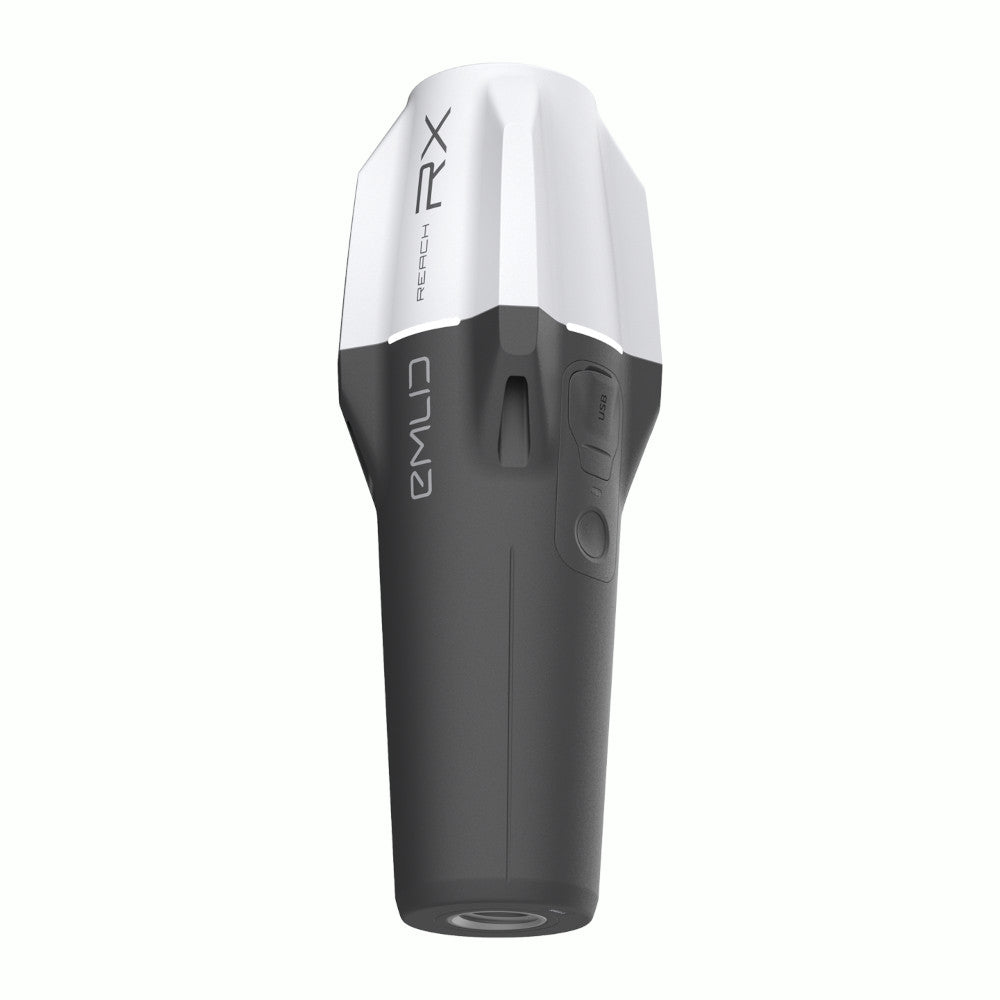

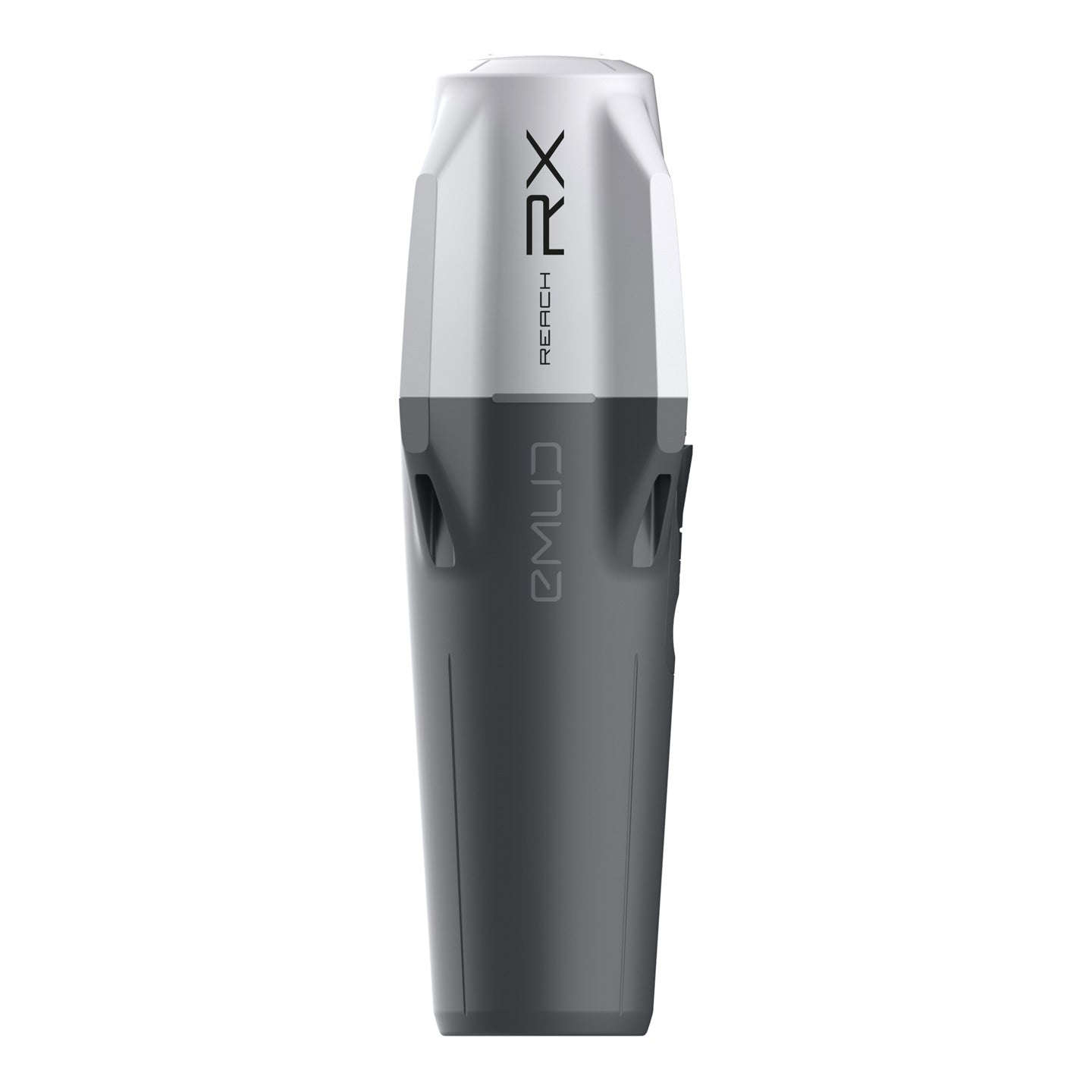

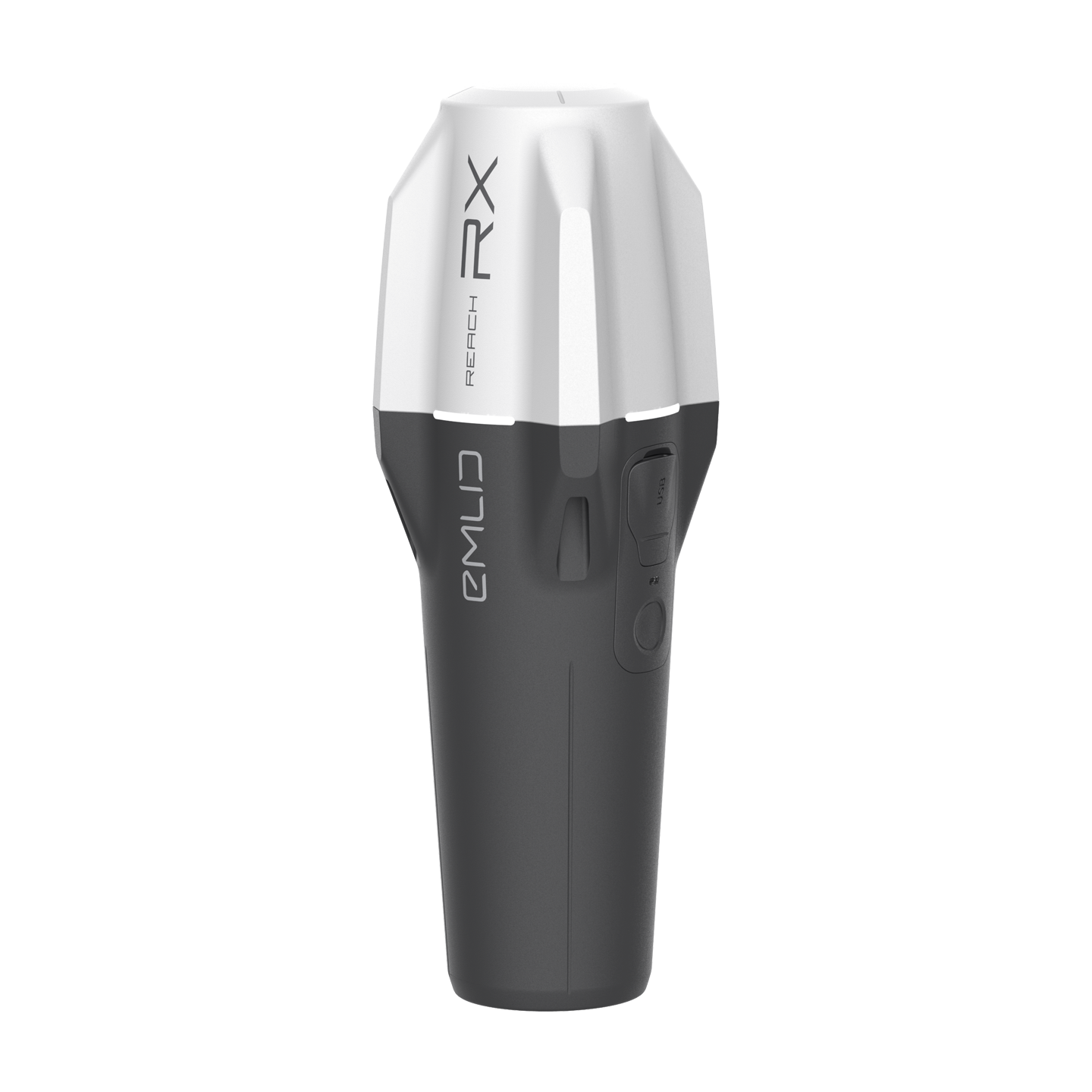

Reach RX

250 g
172 mm x 51 mm x 51 mm

Weighs like a TV remote controller and can be carried in your pocket.

-20 to +65 °C (-4 to 149 °F)

We extensively tested Reach RX in conditions
that simulate the coldest winters and hottest
summers.

IP68

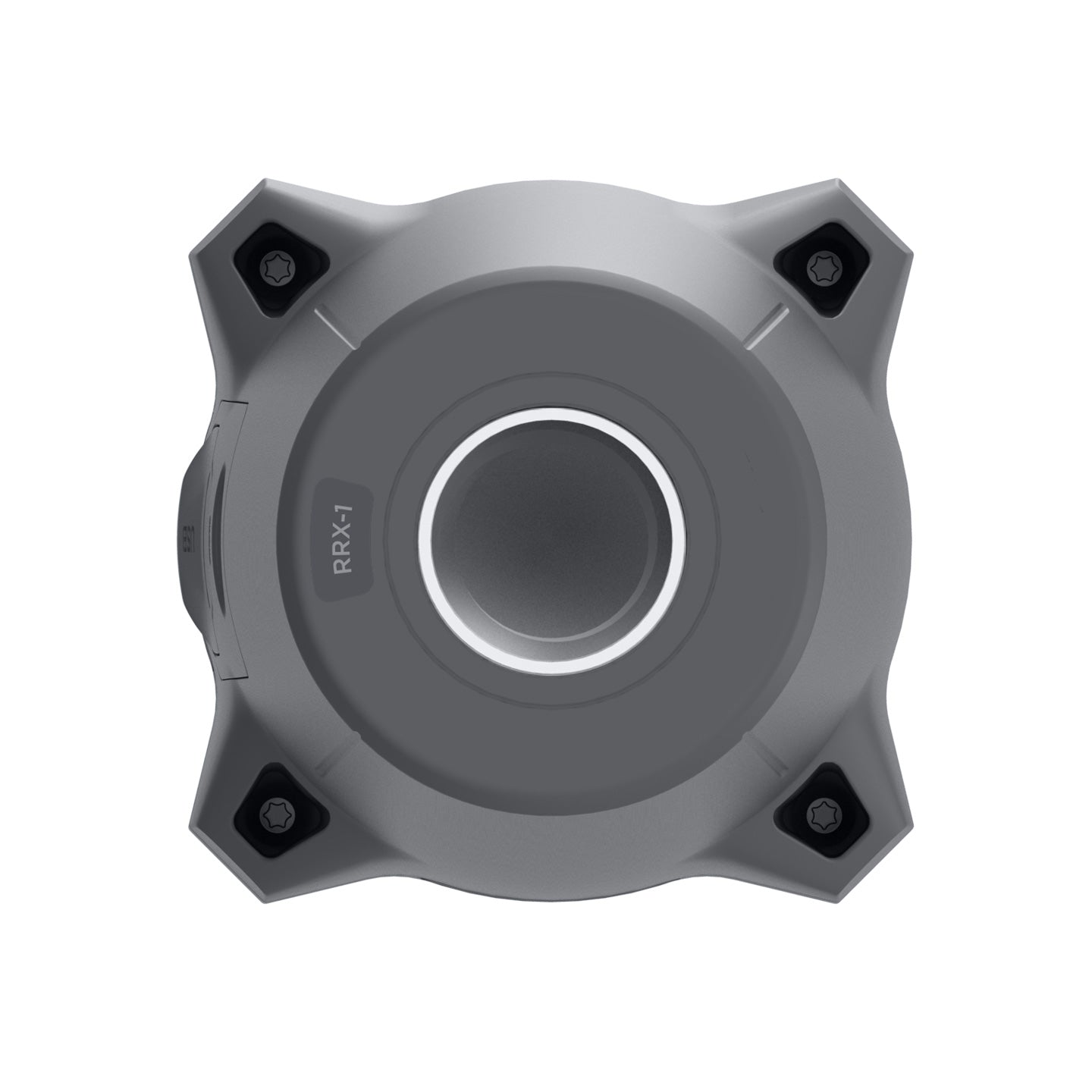

RX is waterproof up to a 1.5 m depth. The connector is sealed and protected from water and dust with a silicone plug.

16 hours of work

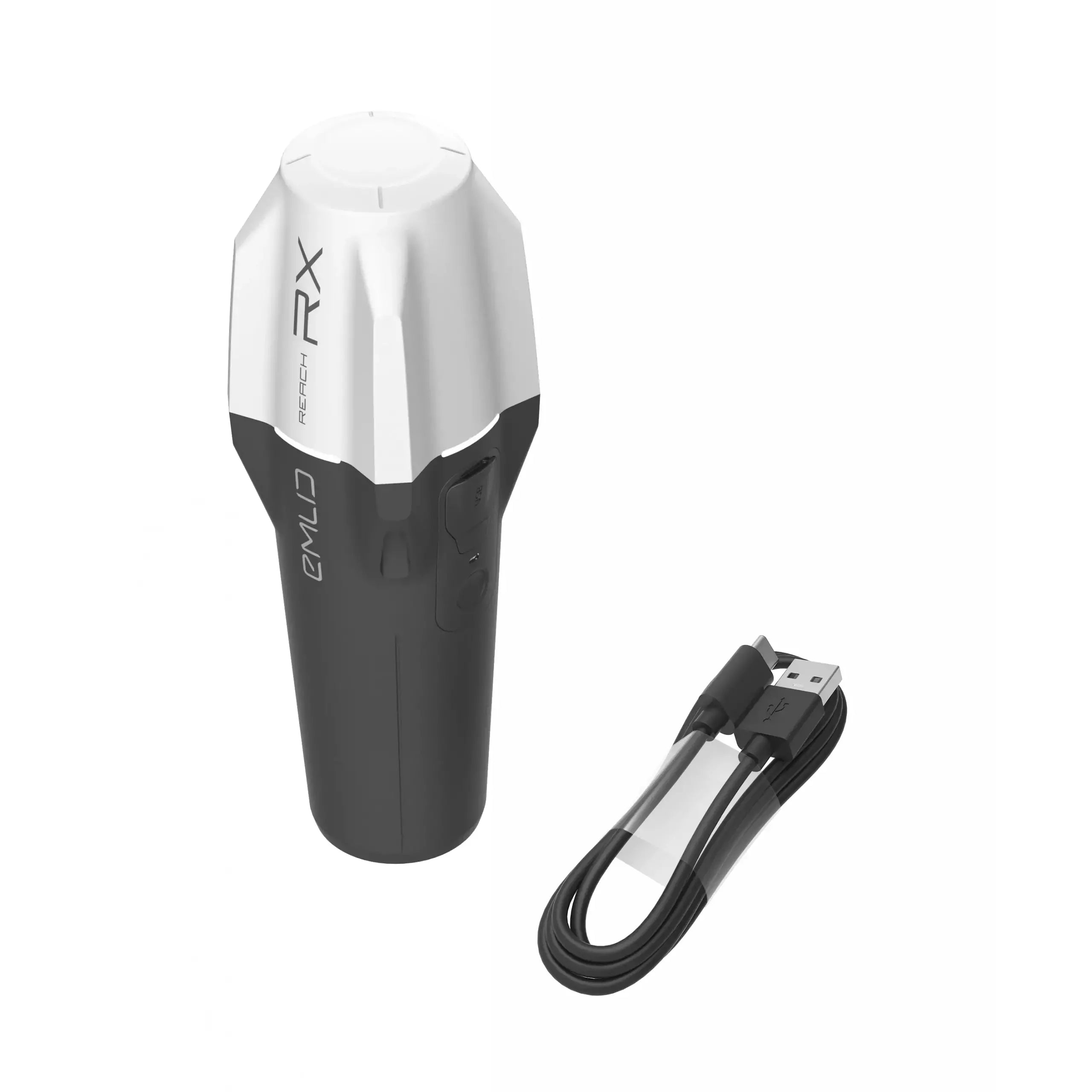

2 days of work for less than 3 hours of charging. You can charge on-the-go from any USB port or power bank.

Li-Ion battery

An industrial battery that handles both high and low temperatures well.

2000+ cycles

of charging and discharging while maintaining original capacity.

To create a project for data collection, choose your coordinate system from the library or enter its parameters manually. The app supports thousands of coordinate systems, projections, grids, and geoids.

In the stakeout mode, the app displays East-North and straight-to-line distances and supports cut and fill indications. A close-up alignment mode helps you to center precisely above the point.

Coordinate systems based on
WGS84, NAD83,
GDA2020, and others

Create line work on the go, start new lines, and continue collecting existing ones.

You can either use predefined geometry types or a full-blown code library. The line work is displayed right away, so you can always see how your project is progressing.

During the stakeout, you can easily navigate to a line, and stake it out with an offset and with a chainage.

Quickly switch between different object codes as the whole library is at your fingertips at all times

To measure and describe objects, upload your custom code library or use a built-in one with more than a hundred codes. Easily create new codes on the fly right in your survey project.

Our responsive project view supports satellite imagery, as well as your own custom background map sources.

The Emlid Flow app is synchronized with the Emlid Flow 360 service. This allows you to create and access survey projects, manage coordinate systems, and export and import data using both the mobile app and the cloud service.

Export and import formats
CSV, DXF, and Shapefile

Import your code library to Emlid Flow 360, and it is immediately available for your projects inside the Emlid Flow mobile app. No need to check if the latest version is on the collector, as it all syncs automatically.

Export and import formats
CSV, DXF, and Shapefile

Foldable survey pole

Our foldable survey pole is perfect for smooth data collection with Reach RX. You can carry this combo anywhere and shoot points anytime a great addition to your toolbox on the survey site.

Deploy Reach RX for teamwork

If you have a big project team, Reach RX is a perfect fit. With no configuration to get wrong, your can be sure your team is collecting reliable data
